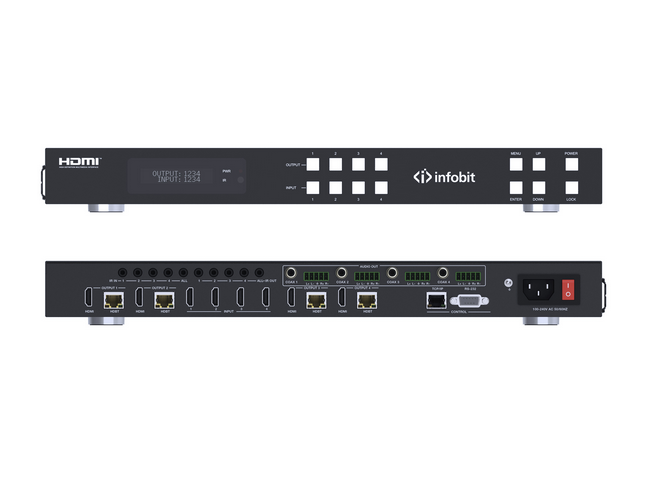

iMatrix H44H150

4×4 HDMI 18Gpbs 4K60 Matrix Switcher with HDBaseT
HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant
Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports
4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
Support 18Gbps lossless compressed HDBaseT signal transmission
Support 4K->1080P Down Scaler for each output port
HDR, HDR10, HDR10+, Dolby Vision, and HLG are supported
HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080P or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
Support IR matrix
Audio de-embedded is supported via analog and coax ports
Advanced EDID management and CEC control are supported
24V POC on all HDBaseT ports
1U rack mounted design with front panel OLED display
Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI
